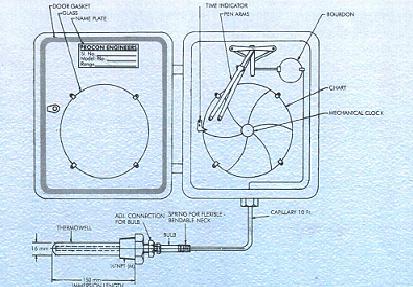

PROCON offer Temperature Recorder consist of a measuring element, a Mercury – in – Steel unit, a Bourdon Tube, movement and circular chart rotated by a Mechanical or Electrical Clock. The thermal system consist of a Mercury – in – Steel bulb and a Bourdon Tube connected by a fine bore capillary tube. The bulb is immersed in the service medium whose temperature is to be measured. As the temperature increases, mercury expands which in turn increases pressure inside the bourdon. The movement of bourdon end is magnified through linkage system and moves the pen on the graduated chart showing the temperature. The chart rotates with the help of Clock thereby recording the Temperature on the chart at a specified time.
